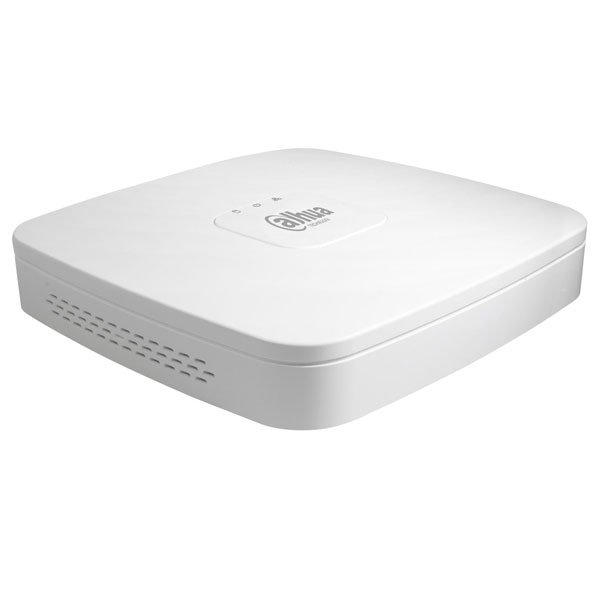

NVR4116-4KS2 Smart 1U 4K&H.265 Lite Network Video Recorder

Description Technical Specifications System Main Processor Quad-core embedded processor Operating System Embedded LINUX Display Interface 1 HDMI, 1 VGA Resolution 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768 Multi-screen Display 4CH: 1/4 8CH: 1/4/8/9 16CH: 1/4/8/9/16 OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording Video Detection and Alarm Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering Alarm input N/A Relay Output N/A Playback and Backup Playback 4CH: 1/4 8CH: 1/4/8 16CH: 1/4/8/16 Search Mode Time /Date, MD and Exact Search (accurate to second), Smart search Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom Backup Mode USB Device/Network Storage Internal HDD 1 SATA III Port, Up to 6 TB capacity for each HDD HDD Mode Single eSATA N/A Auxiliary Interface USB 2 USB Ports (2 USB2.0) RS232 N/A RS485 N/A Third-party Support Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more Audio and Video IP Camera Input 4/8/16 Channel Two-way Talk 1 Channel Input, 1 Channel Output, RCA Recording Compression H.265/H.264 Resolution 8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc. Record Rate 80Mbps Bit Rate 16Kbps ~ 20Mbps Per Channel Record Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop Record Interval 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec Network Interface 1 RJ-45 Port (10/100Mbps) Ethernet Port 1 Independent 100Mbps Ethernet Port PoE N/A Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, IP Search (Support Dahua IP camera, DVR, NVS, etc.), Easy4ip Max. User Access 128 users Smart Phone iPhone, iPad, Android Interoperability ONVIF 2.4, CGI Conformant Electrical Power Supply DC12V/2A Power Consumption <6.3W (Without HDD) Environmental Operating Conditions -10°C ~ 55°C ( 14°F ~ 131°F), 86 ~ 106kpa Storage Conditions -20°C ~ 70°C (-4°F ~ 158°F), 0 ~ 90% RH Construction Dimensions Smart 1U, 204.6mm×204.6mm×45.6mm (8.1″ x 8.1″ x 1.8″) Net Weight 0.4kg (0.88 lb) (without HDD) Gross Weight 1.5kg(3.31 lb)(without HDD) Certifications CE EN55032, EN55024, EN50130-4, EN60950-1 FCC Part 15 Subpart B, ANSI C63.4-2014 UL UL60950-1 CAN/CSA C22.2 No.60950-1
