ATEN CS1953 3-Port USB-C DisplayPort Hybrid KVMP™ Switch

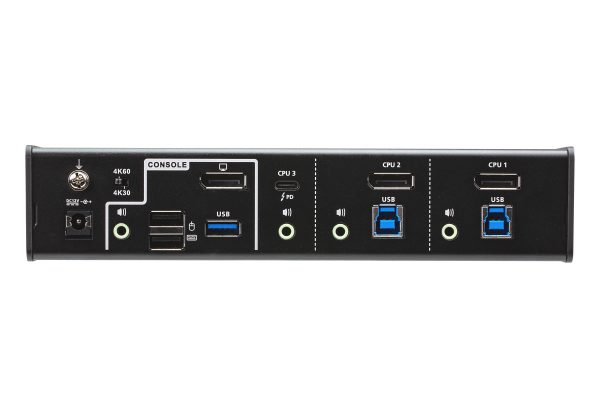

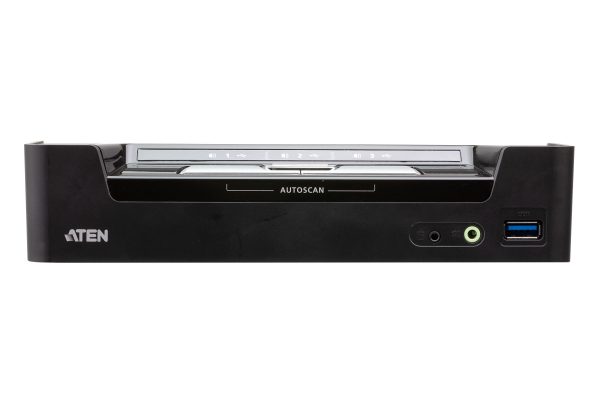

Overview   The CS1953, the industry’s first 3-port USB-C DisplayPort Hybrid KVMP™ Switch, carries out ergonomic desktop style with the power of a KVM and the popularity of USB-C connectivity to facilitate professional and commercial workstation applications with better mobility, so as to enhance total desktop productivity. With the DisplayPort monitor set up on your desktop and access to up to two PCs via DisplayPort and a laptop (or other mobile device) via USB-C, you can expect a rich experience with outstanding 4K visual clarity, as well as fast switching between multiple computers and mobile flexibility. Diagram Specifications Computer Connections 3 Port Selection Hotkey, Pushbutton, Mouse, Remote Port Selector Connectors Console Ports 2 x USB Type A Female 1 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear) KVM (Computer) Ports CPU1 and CPU2: 2 x USB3.1 Gen1 Type B Female (Blue) 2 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green) CPU3: 1 x USB Type-C Female (Black) 1 x 3.5mm Audio Jack Female (Green) Remote Port Selector 1 x 2.5mm Audio Jack Female (Black) Power 1 x DC Jack USB Hub 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front, 1 x rear) Switches Selected 3 x Pushbutton Mode Switch 1 x Slide Switch LEDs Audio 3 (Green) KVM 3 (Orange) USB 3 (Green) Emulation Keyboard / Mouse USB Video 4096 x 2160 @ 60Hz Sca Interval 1-99 Seconds (Default: 5 sec.) Power Consumption DC12V:5.78W:269BTU Environmental Operating Temperature 0-40°C Storage Temperature -20-60°C Humidity 0-80% RH, Non-condensing Physical Properties Housing Metal, Plastic Weight 0.50 kg ( 1.1 lb ) Dimensions (L x W x H) 20.63 x 7.54 x 4.40 cm (8.12 x 2.97 x 1.73 in.) Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. Features One USB keyboard, mouse and one DisplayPort monitor control two DisplayPort computers, one USB-C device and share two USB peripherals Supports superior video quality – up to 4K DCI (4096 x 2160 @ 60Hz) Provides USB Power Delivery 3.0 for USB-C device charging up to 45W1 Computer selection via pushbuttons, hotkeys, mouse2, and remote port selector Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates Supports DisplayPort Alternate Mode (DP Alt Mode) which enables the USB connection to carry DisplayPort signals Independent switching of KVM, USB peripheral, and audio focus3 DisplayPort 1.2 compliant; HDCP 1.4 compliant Supports HD Audio3 Supports DisplayPort Dual-Mode technology (DP )4 Firmware upgradeable Bus-powered5Note: 1. An additional power adapter is needed on the CS1953 for USB-C device charging to work. 2. Mouse port switching is only supported under mouse emulation mode with a USB 3-button mouse wheel. 3. HD audio through DisplayPort channel cannot be switched independently. 4. DisplayPort Dual-Mode technology (DP ) does not require an active adapter for most single display setups. Active DisplayPort adapters are recommended if you are unsure of the video source’s DP compatibility. 5. The unit can be bus-powered by the connected KVM sources via USB ports. Package Contents 1x CS1953 3-Port USB-C DisplayPort Hybrid KVMP™ Switch 2x DisplayPort 1.2 Cables 2x USB 3.0 Type-A to Type-B Cables 1x USB-C Cable 3x Audio Cables 1x Remote Port Selector 1x User Instructions 1x Power Adapter* Note: *The CS1953 is provided in two packages; one package contains a power adapter, the other does not.
